SDS011 Particle Sensor with ESP32

SDS011 Particle Sensor Setup

SDS011 particle sensor with ESP32 in Arduino

Introduction

This project is for testing purpose and provides a working example to read out the fine dust sensor SDS011. This sensor measures PM 2.5 and PM 10 air particle count in μg/m3.

Usage

Just compile and upload the “.ino” file to the board, connect the sensor as shown below and the data shall be shown in the serial terminal.

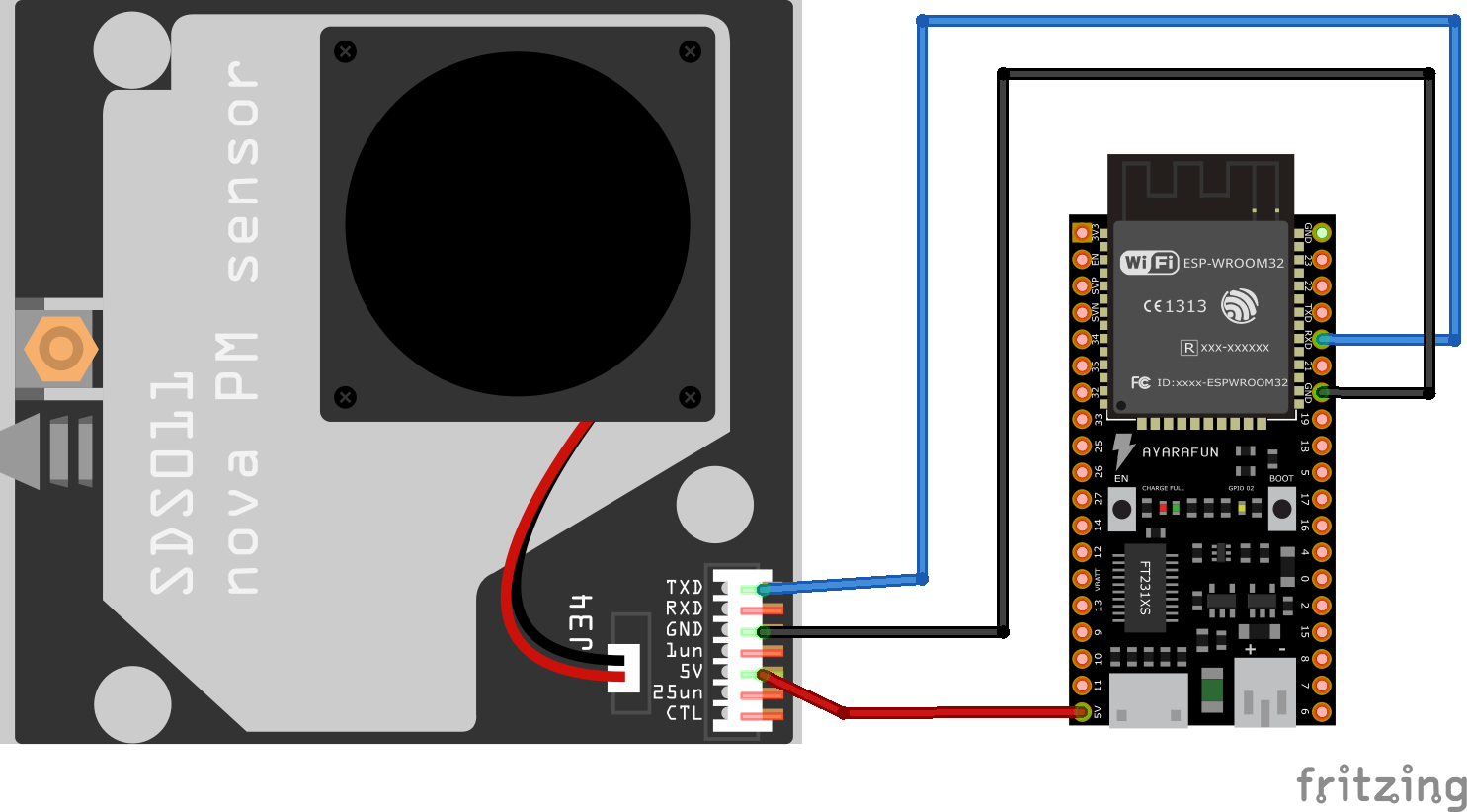

Schematic

SDS011

Components
