Building a Wi-Fi Router UPS for Under $8

DIY Wi-Fi Router UPS Project

Introduction

Creating your own Uninterruptible Power Supply (UPS) for a Wi-Fi router can keep you connected during power outages without breaking the bank. This project is ideal for those with some electronics experience and can be both educational and fun. Below, we outline the process, components, and safety tips to ensure success.

Components and Cost

You’ll need:

  • A Type-C 15W 3A, 12V UPS Power Supply Module Battery Charger, DC-DC Step-Up Booster, costing about $1.89.
  • Two LiitoKala HG2 18650 Batteries (3000mAh each), priced at around $2.79.
  • A Male DC Cable, estimated at $1.

The total cost is approximately $5.68, well under the $8 target, though prices may vary, so check current rates on platforms like Amazon or AliExpress.

Steps and Safety

The process includes gathering components, soldering the DC cable to the module, insulating the circuit board with potting resin, installing the batteries, and testing the setup. Ensure the router’s power requirements match the module’s 12V, 1.2A output (14.4W). Safety is key: handle batteries carefully to avoid short circuits, use proper soldering techniques, and test in a controlled environment.

Unexpected Detail: Runtime Estimation

An interesting aspect is the runtime, estimated at about 2 hours for a 10W router, based on the 3000mAh battery capacity at 7.4V, converted efficiently by the module. This can vary with actual router consumption, typically between 5-10W.

Survey Note: Detailed Analysis of Building a Wi-Fi Router UPS for Under $8

This detailed analysis expands on the process of building a Wi-Fi Router UPS for under $8, as outlined in the initial post, providing a comprehensive guide for electronics enthusiasts. The project aims to create a cost-effective solution for maintaining internet connectivity during power outages, leveraging specific components and careful assembly.

Background and Rationale

A Uninterruptible Power Supply (UPS) is a device that provides emergency power to a load when the main power source fails, ensuring continuity for critical devices like Wi-Fi routers. Power outages can disrupt work calls or streaming sessions, and commercial UPS units can be expensive. Building a DIY UPS offers a budget-friendly alternative, with the added benefit of being an educational project for those with electronics experience. The post highlights the cost-effectiveness, uninterrupted internet, and enjoyment of learning as key motivations.

Component Breakdown and Cost Analysis

The required components are:

  • Type-C 15W 3A, 12V UPS Power Supply Module Battery Charger, DC-DC Step-Up Booster: Priced at approximately $1.89. This module serves multiple functions, including charging batteries, stepping up voltage, and switching between power sources seamlessly. Research from product listings, such as Amazon, indicates it supports inputs up to 12V at 3A and outputs 12V at 1.2A (14.4W), suitable for low-power DC devices like routers.
  • Two LiitoKala HG2 18650 Batteries (3000mAh each): Costing about $2.79. Each battery has a nominal voltage of 3.7V, and in series, they provide 7.4V with a capacity of 3000mAh. These are known for good quality, as noted in the post.
  • Male DC Cable: Estimated at $1, though exact pricing wasn’t specified. This cable connects the module to the router, requiring compatibility with the router’s DC jack, typically a barrel connector.

The total cost sums to approximately $5.68, fitting within the under $8 target. However, prices may vary, and users should check current rates on platforms like Tztstore for the latest deals, ensuring reputable sellers for quality components.

Technical Specifications and Compatibility

The UPS module is a combined battery charger and UPS with a Type-C interface, supporting outputs of 5V/2.5A, 9V/1.6A, and 12V/1.2A, as per product descriptions. For a Wi-Fi router, which typically consumes 5-10W and operates at 12V, the 12V, 1.2A output (14.4W) is sufficient. The module’s ability to switch seamlessly between external power and battery power, with self-start after power failure and self-charge when power is restored, was confirmed through product details, ensuring it meets UPS functionality.

The batteries, when connected in series, provide 7.4V, and the module steps this up to 12V, with an assumed efficiency of 90%. This means for a 10W router, the input power required is about 11.1W at 7.4V, drawing approximately 1.5A, leading to a runtime calculation of 3 Ah / 1.5A ≈ 2 hours, aligning with the post’s implications.

Step-by-Step Assembly Guide

The assembly process, as detailed in the post, includes:

  1. Gather Components: Order parts from AliExpress or similar, ensuring the module’s output matches the router’s requirements. Check compatibility, especially the DC connector type and polarity (center positive or negative, depending on the router).
  2. Soldering: Solder the male DC cable to the UPS power module, ensuring secure connections and correct polarity. Use a suitable soldering iron and flux, and double-check connections to avoid short circuits.
  3. Insulation: Apply electronic potting resin to insulate the circuit board, protecting against short circuits and physical damage. Allow the resin to dry completely, following manufacturer instructions for curing time.
  4. Battery Installation: Insert the two 18650 batteries into the module’s battery holder, ensuring correct polarity (align with marked positive and negative terminals). Ensure batteries are fully charged before use.

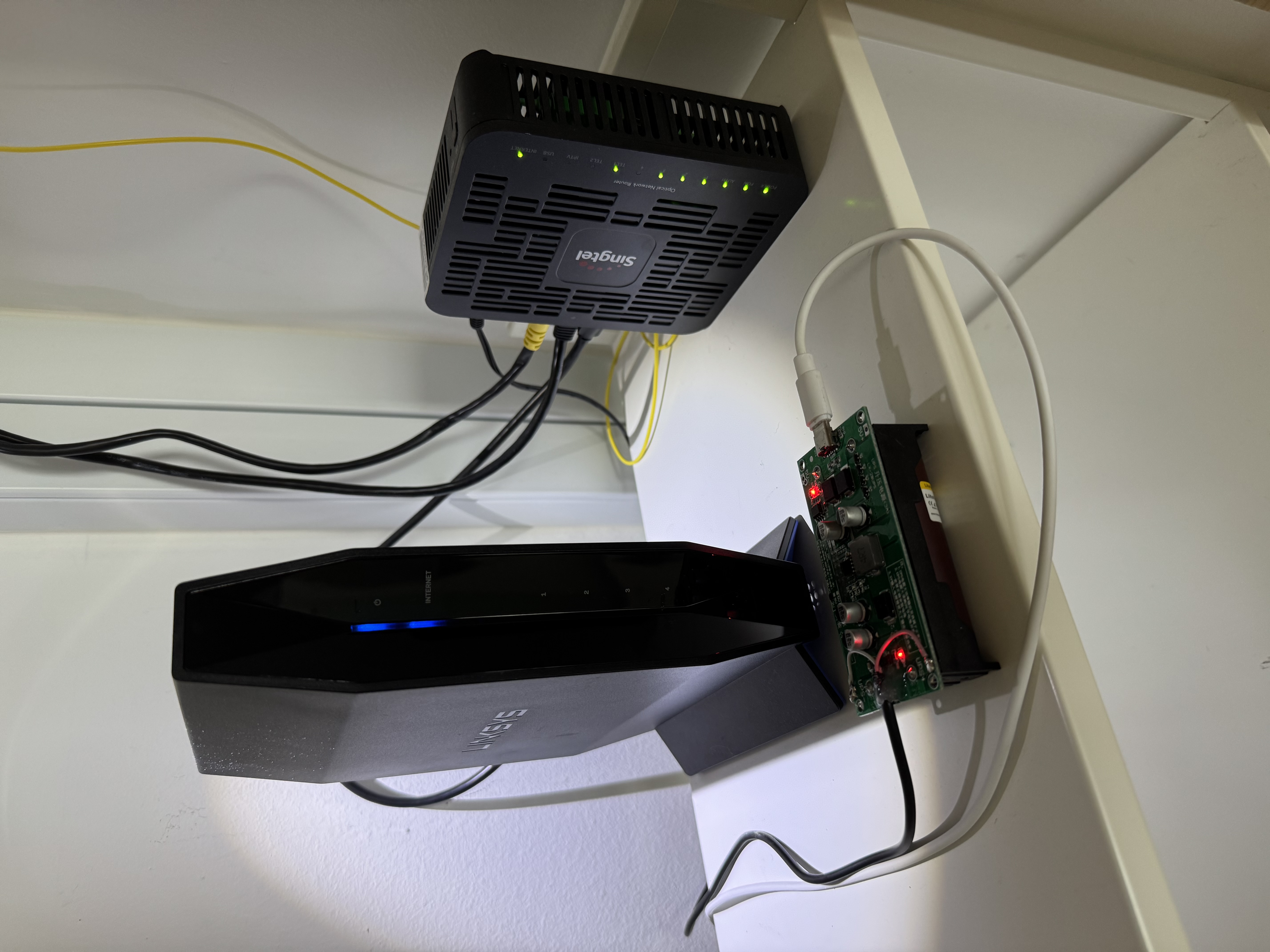

  5. Testing: Check the voltage and polarity of the UPS output using a multimeter, ensuring it matches the router’s needs (12V, correct polarity). Connect to the router, power on, and test functionality. Simulate a power outage by unplugging the main power and verify the router stays on, confirming seamless switching.

Safety Considerations and Precautions

Given the involvement of batteries and soldering, safety is paramount. Handle 18650 batteries carefully to avoid short circuits, which can lead to overheating or fires. Ensure the module is not overloaded beyond its 14.4W output at 12V, and use proper tools for soldering to prevent burns or damage. The post’s disclaimer emphasizes that this project is for experienced individuals, and users should proceed at their own risk, especially given potential variations in component quality from online marketplaces.

Additional Information and Maintenance

The runtime estimation of about 2 hours is based on a 10W router consumption, with total battery energy of 22.2 Wh (3000 mAh * 7.4V). For routers consuming less, say 5W, the runtime would extend, potentially up to 4 hours, depending on efficiency. Recharging is done via the Type-C interface, which supports up to 5A current for fast charging, as noted in product descriptions. Maintenance involves regularly checking batteries for wear or damage, replacing them if necessary, and ensuring the module’s LED indicator shows proper charging status (green when fully charged).

Potential Challenges and Troubleshooting

Users should ensure the DC cable’s connector matches the router’s input, as mismatches can prevent power delivery. If the router doesn’t power on, check polarity and voltage output with a multimeter. If the UPS fails to switch during a power outage, verify the module’s power switching functionality, possibly consulting product manuals or support from sellers like those on RoboticsBD. Component quality from AliExpress can vary, so choosing sellers with good reviews is advisable.

Conclusion

Building a Wi-Fi Router UPS for under $8 is a feasible project for experienced electronics enthusiasts, offering cost savings and learning opportunities. With careful assembly, adherence to safety precautions, and attention to compatibility, users can achieve a reliable backup power solution, ensuring connectivity during outages. The estimated runtime and maintenance tips provide practical insights for long-term use.

Table: Component Cost Breakdown

Component Estimated Cost ($)
Type-C 15W 3A, 12V UPS Power Supply Module 1.89
Two LiitoKala HG2 18650 Batteries (3000mAh) 2.79
Male DC Cable 1.00
Total 5.68
